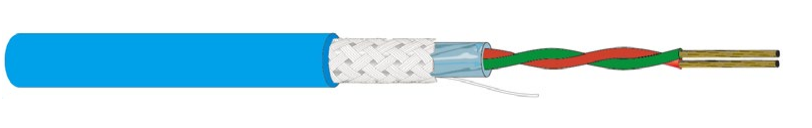

Aipu Profibus PA Cable 2 Cores Midabka Buluugga ah ee S-PE Instruments Cable
Codsiga
Isku xirka nidaamyada xakamaynta ee qalabka goobta ee habka otomaatiga
codsiyada.
Dhismayaasha
1. Sameeyaha: Naxaasta Ogsajiinta Adag ee Bilaashka ah (Fasalka 1)
2. Xakamaynta: S-PE
3. Aqoonsiga: Casaan, Cagaar
4. Filler: Halogen Free Compound
5. Shaashadda:
1. Cajalad Aluminium/Polyester ah
2. Silig Naxaas ah oo Tidcan (60%)
6. Galka: PVC/LSZH
7. Galka: Buluug
» Heerkulka Rakibaadda: Ka sarreeya 0°C
» Heerkulka shaqada: -15°C ~ 70°C
Heerarka Tixraaca
» BS EN/IEC 61158
» BS EN 60228
» BS EN 50290
» Awaamiirta RoHS
» IEC60332-1
Waxqabadka Korontada
Korantada shaqaynaysa:300V
Tijaabi Voltage:2.5KV
Caqabadda Sifada:100 Ω ± 10 Ω @ 1MHz
Maamulaha DCR:22.80 Ω/km (Max. @ 20°C)
Iska caabinta dahaarka:1000 MΩhms/km (min.)
Awooda Labada Dhinac:60 nF/Km @ 800Hz
